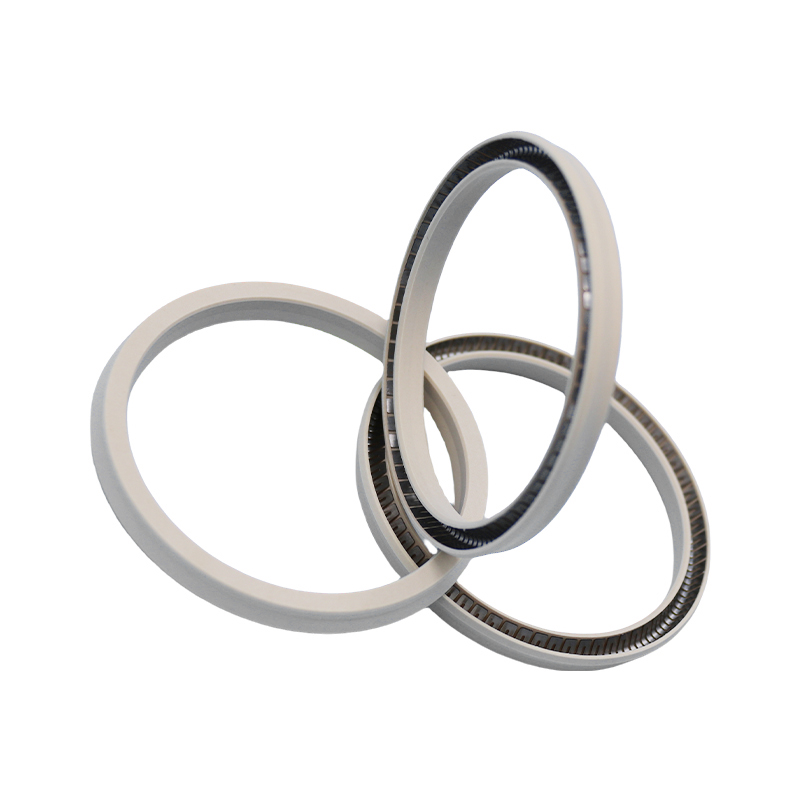

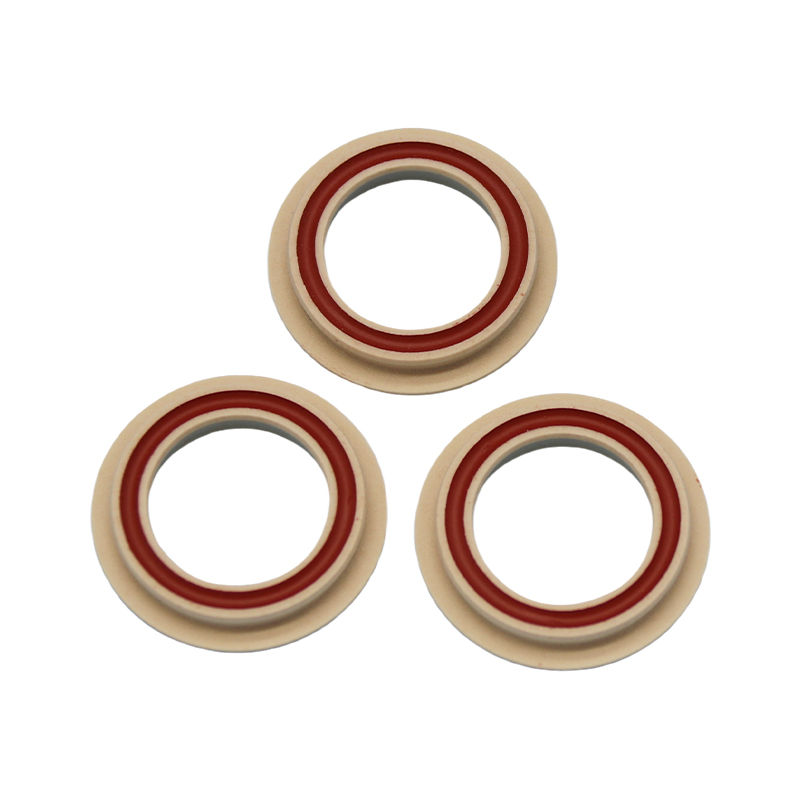

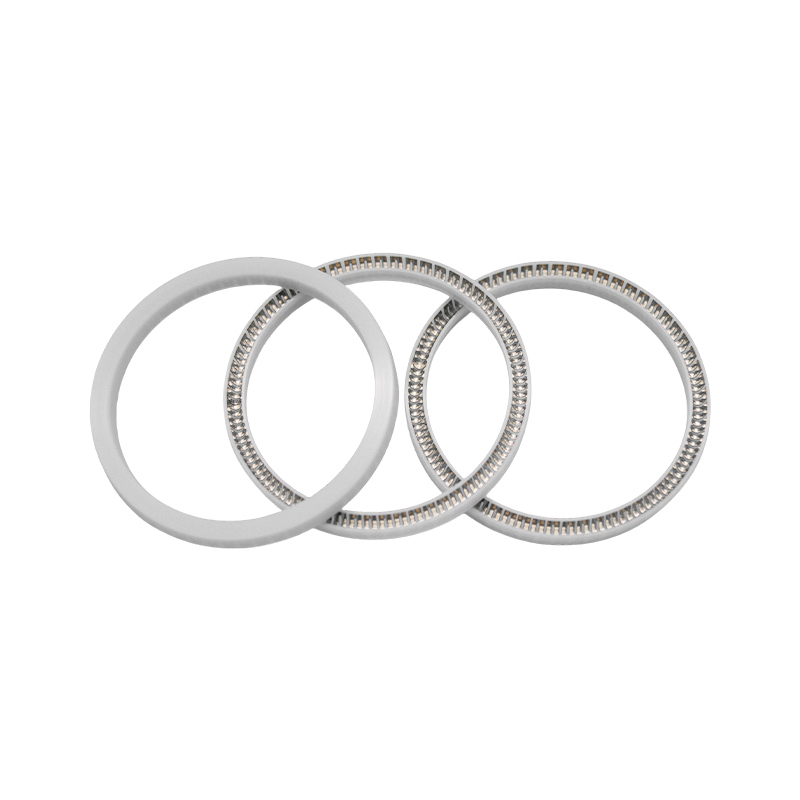

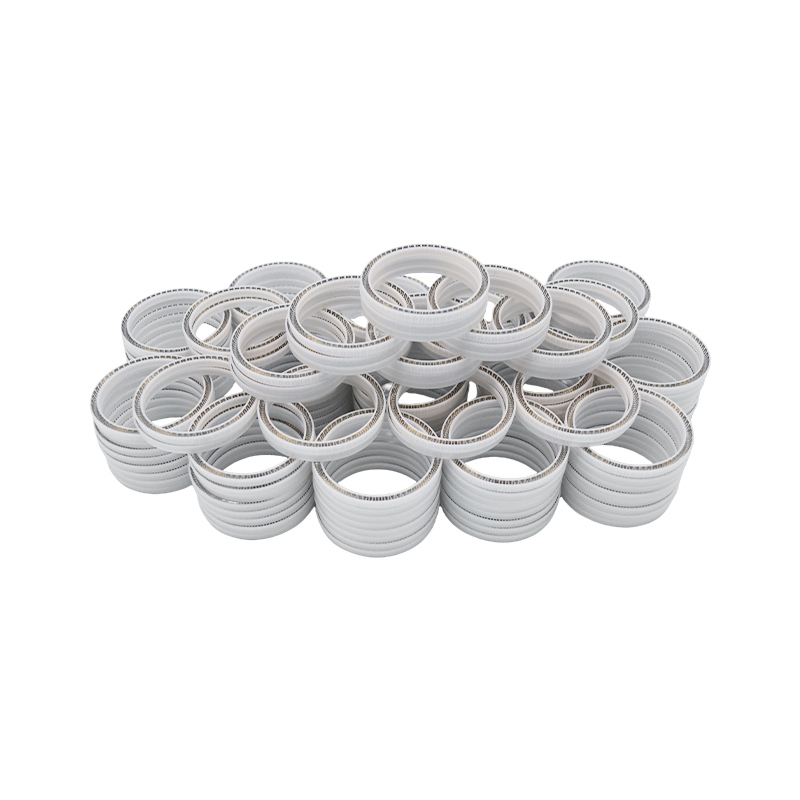

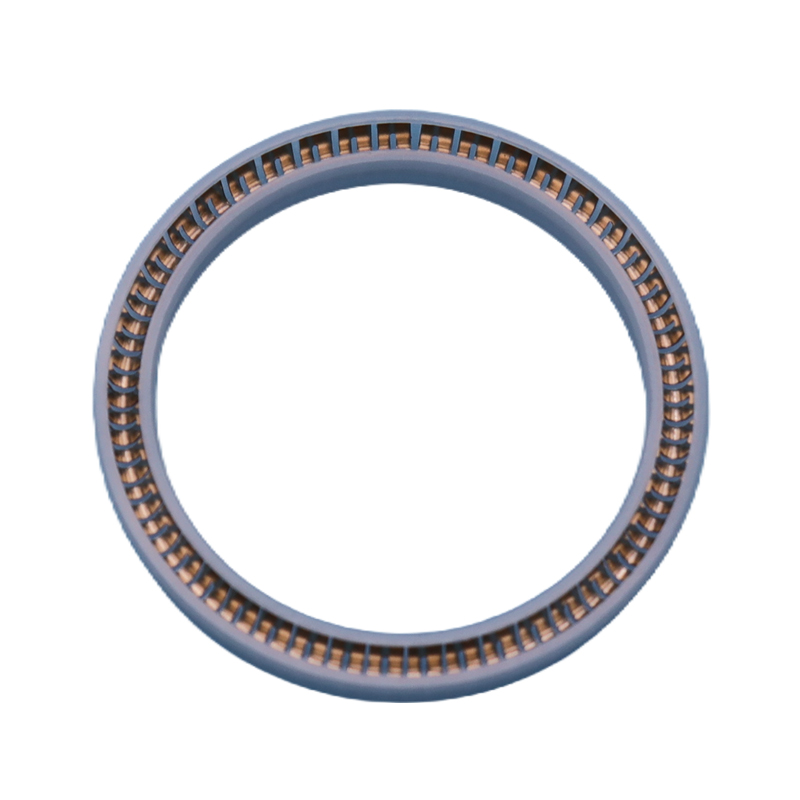

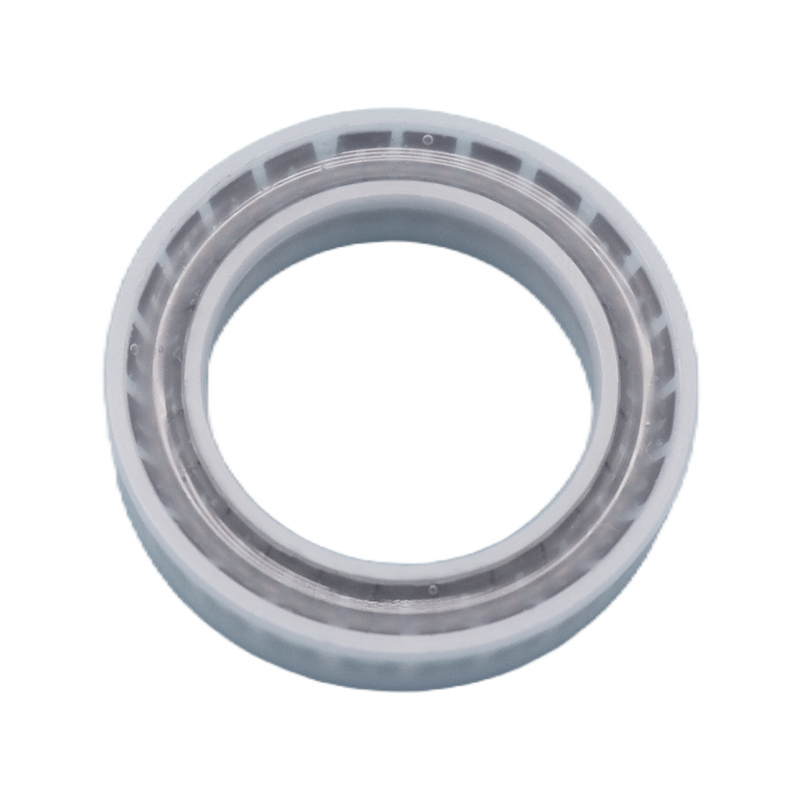

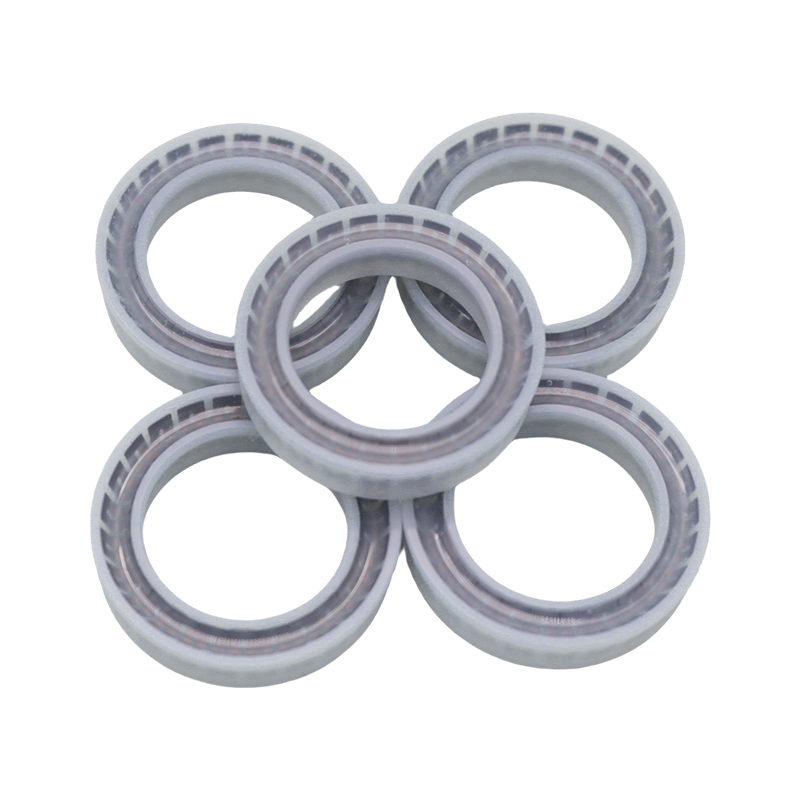

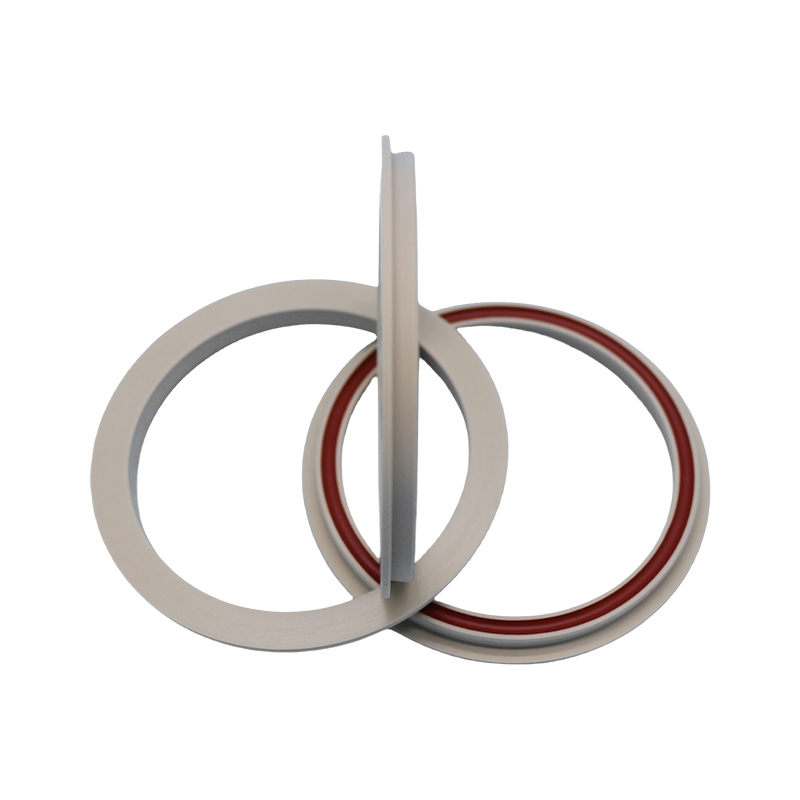

Pan Seal Non-Standard Customization

HVA type (for shaft)
HVB type (for hole)
HVD type (for rotation)
HPW type (for rotation)
The operating conditions are wear-resistant, corrosion-resistant, high-pressure and high-temperature resistant. Customization is supported according to drawings and samples. In addition, commonly used standard parts are in stock.

Consult

Features
Technical Indicators
Overall Dimension

1. Sealing performance is not affected by insufficient lubrication at start-up 2. Effectively reduce wear and friction resistance 3. Can show different sealing forces to meet various application requirements through the combination of different sealing materials and springs. 4. No mold costs - especially suitable for small and diverse seals, made by special CNC processing machines. 5. Dimensionally stable, chemical corrosion resistance and heat resistance are far superior to commonly used sealing rubber. There is no problem of sealing performance degradation derived from volume expansion or contraction 6. Can be installed in standard O-ring grooves, with exquisite structure. 7. Greatly improve sealing ability and service life 8. The groove of the seal can be filled with any anti-pollution material (such as silicone), but it is not suitable for radiation environment 9. Very clean, because the sealing material is Teflon. Will not pollute the process 10. Even in extremely low-speed applications, it is very smooth, with extremely low friction coefficient and no "slip effect" 11. Even if the downtime is long or intermittent operation, the starting friction resistance is small. Can maintain low starting force performance The dispensing machine pan-plug seal (also known as spring energy storage seal) has excellent performance and long service life. The dynamic pressure seal service life is 5-10 times higher than that of conventional sealing products, and can reach up to dozens of times. Under certain conditions, it can have the same service life as the sealing matrix, can be stored indefinitely, and there is no aging problem. 1: It is far more resistant to chemical corrosion and high temperature and high pressure than other seals, and has stable dimensions. 2: It has excellent structure and simple groove processing, and can replace O-rings, Y-rings, skeleton oil seal grooves, etc. 3: It effectively reduces wear and friction resistance, greatly improving the sealing effect and service life. 4: It is made of selected high-quality materials, has a very low friction coefficient, is environmentally friendly and non-toxic, and can be widely used in food machinery and other equipment. 5: Through the combination of different sealing materials and springs, different sealing performance and various application requirements can be displayed. 6: It is easy to use and can be used for reciprocating motion, rotational motion and static sealing. 7: It is resistant to working pressure, high temperature, wear and tear, and can last for a long time. It is also resistant to corrosion from glue and solvents of various dispensing machines.
