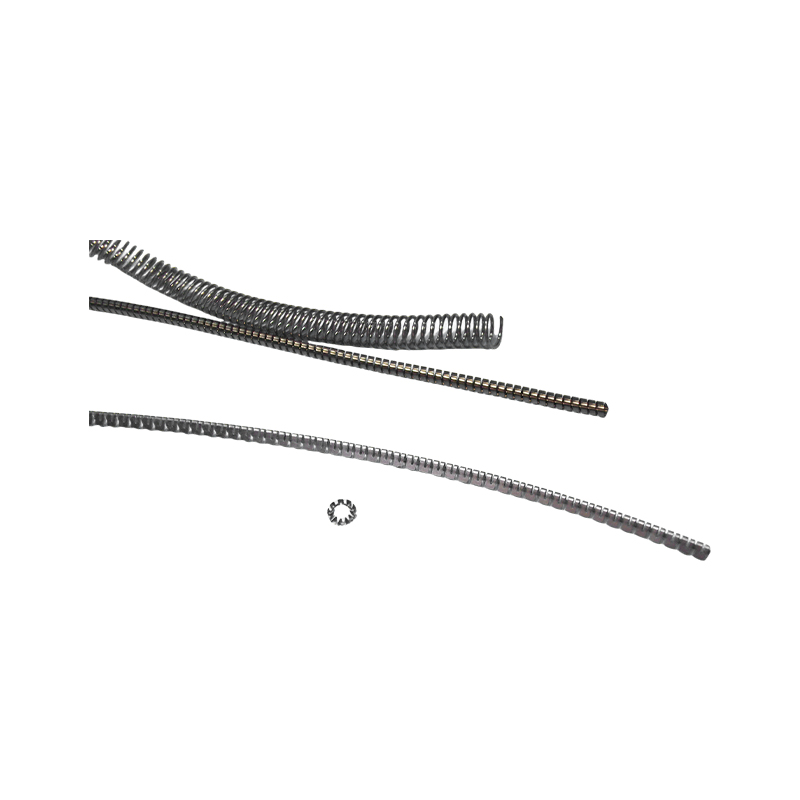

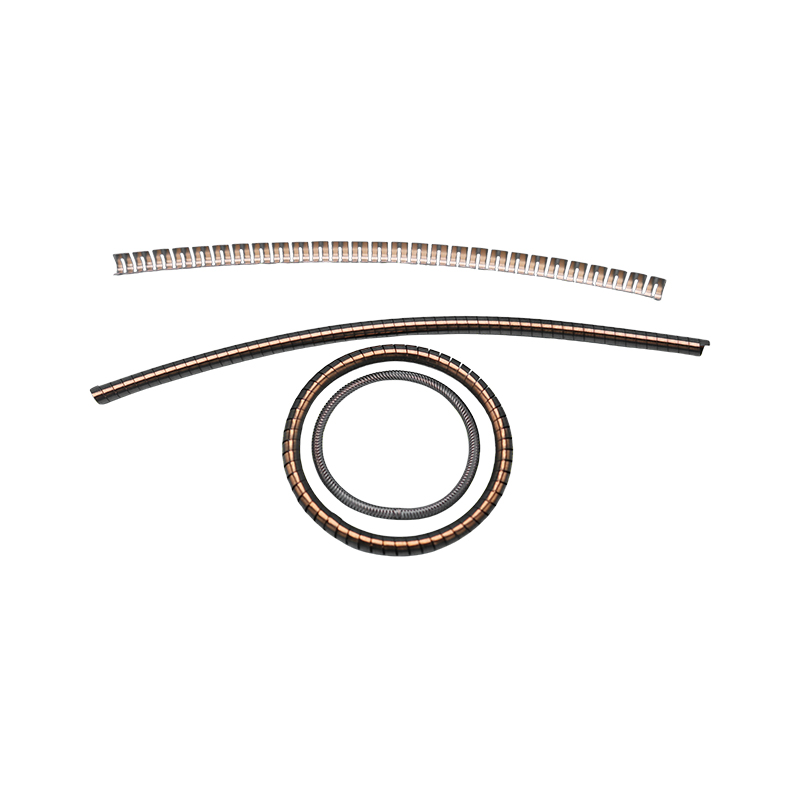

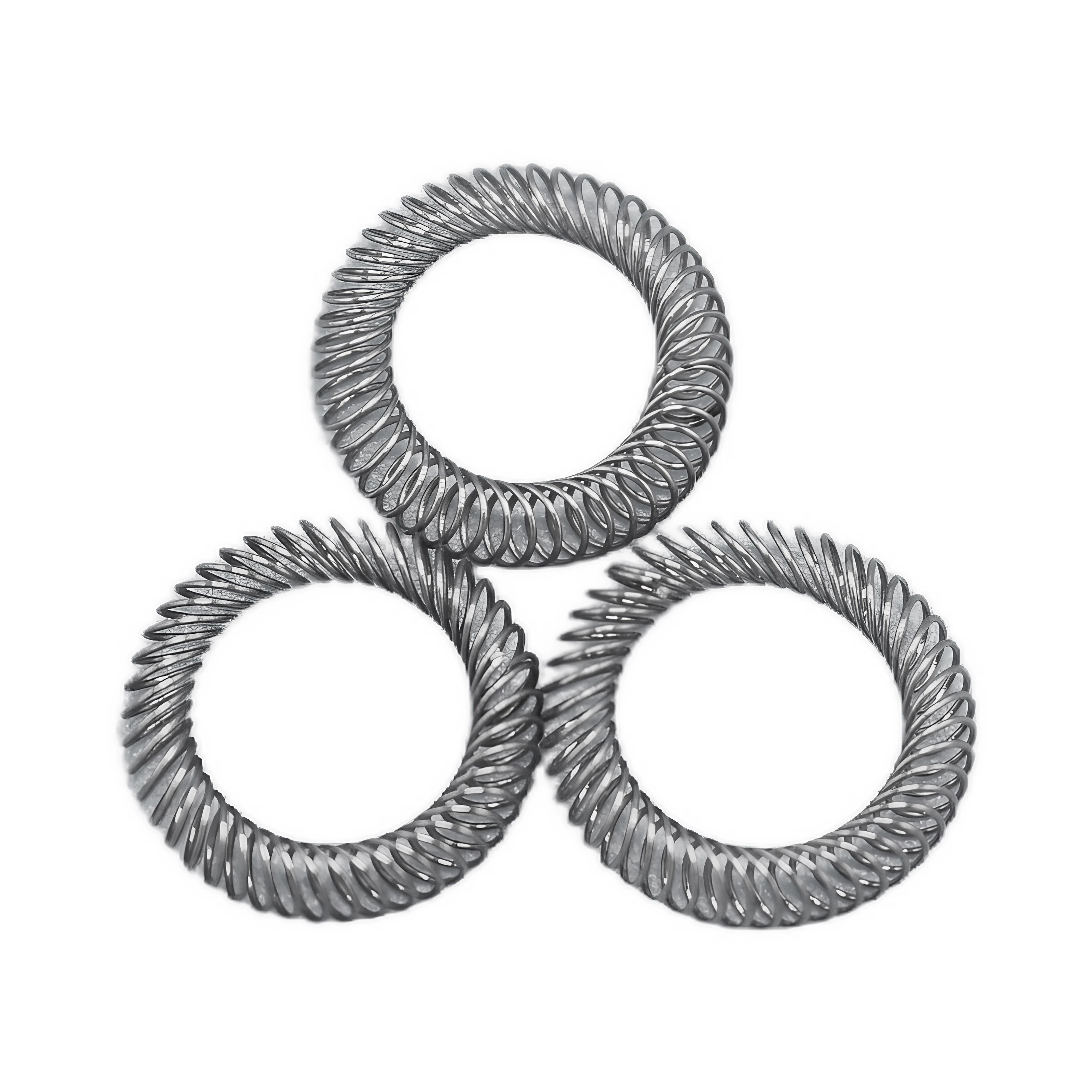

Spring characteristics and applications | ||
Spring Type | Features | Application |
V-Type | Allowable deformation is large, deformation elasticity is small, elasticity is stable, and compensation for dimensional deviation is large | Reciprocating motion is suitable for medium pressure environment and can adapt to small size deviation |
O-Type | Small allowable deformation, large deformation elasticity, and small ability to compensate for dimensional deviation | Each coil of the spring is evenly stressed and is suitable for medium and high pressure environments and low temperature locations |
S-Type | The allowable deformation is large, the sealing force and friction force are constant within the deformation range, and the ability to compensate for dimensional deviation is large | Suitable for low pressure environment |
Spring material | ||
Material | Basic performance | application |
301 | Resistant to air and some chemical media corrosion, excellent fatigue resistance, but not resistant to chloride ion environment | Air, oil, grease, water, steam, food, medicine, etc. |
304 | Good corrosion resistance, heat resistance, low temperature strength and mechanical properties | Air, oil, grease, water, steam, food, medicine, etc. |
316L | Good corrosion resistance, mechanical strength slightly lower than 304. | Acids, caustics, acetic acid, agrochemicals, pickling and acid regeneration plants |
718 | Low temperature stable chemical properties, high temperature oxidation resistance and high tensile, fatigue and fracture strength | Low temperature, high temperature, acid, nuclear engineering, liquid, fuel rocket, etc. |
C276 | Excellent resistance to inorganic acid corrosion, such as nitric acid, phosphoric acid, sulfuric acid, hydrochloric acid and mixed acid of sulfuric acid and hydrochloric acid, etc. | Specially used in highly corrosive environments, such as sea water, concentrated sulfuric acid, concentrated nitric acid, etc. |

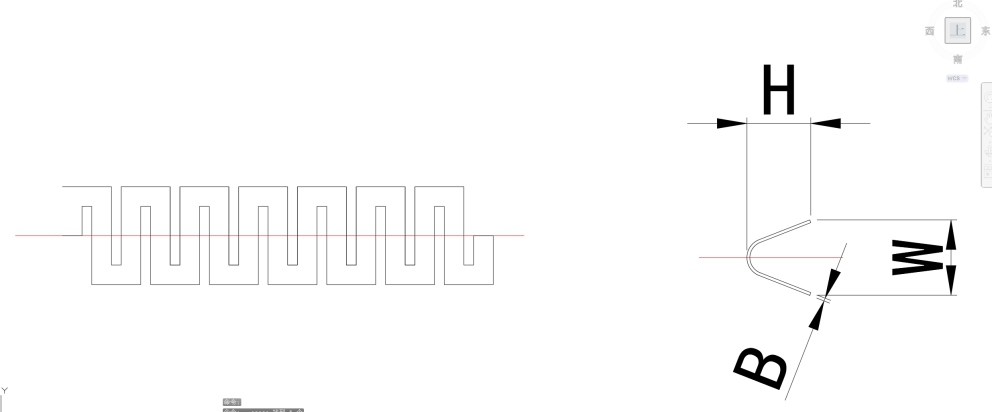

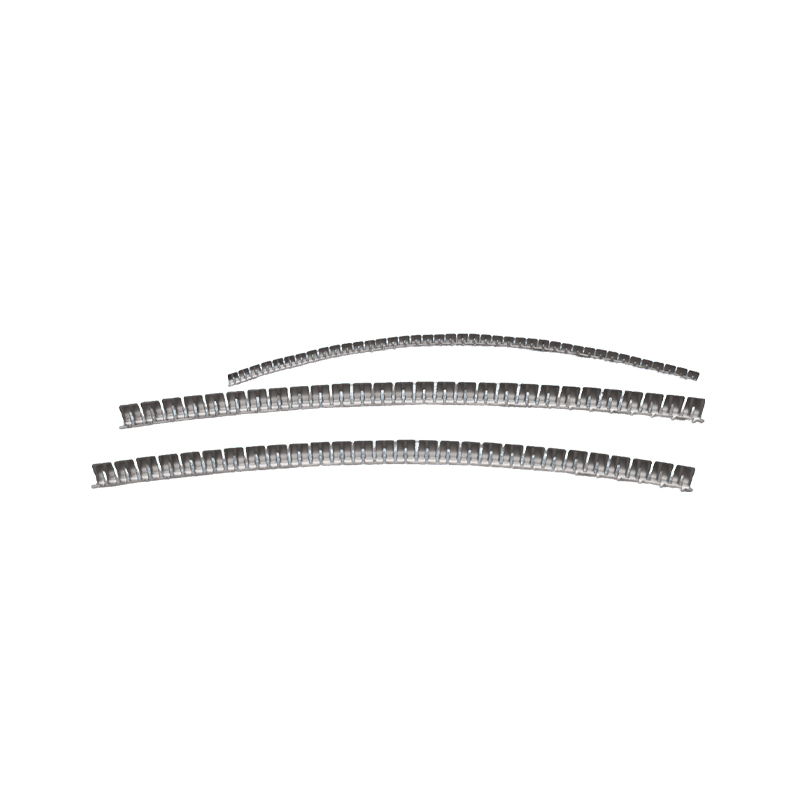

Serial number | V-spring specifications | ||
| width | high | thickness |
1 | 1.2 | 1.2 | 0.1 |
2 | 1.5 | 1.5 | 0.1 |
3 | 2 | 2 | 0.1 |
4 | 2 | 2 | 0.06 |
5 | 2.5 | 2.5 | 0.12 |
6 | 2.5 | 2.5 | 0.15 |
7 | 2.8 | 2.8 | 0.12 |
8 | 2.8 | 2.8 | 0.15 |
9 | 2.9 | 2.8 | 0.15 |
10 | 3.5 | 3.5 | 0.15 |
11 | 4 | 4 | 0.15 |
12 | 4 | 4 | 0.2 |
13 | 4.3 | 4.2 | 0.2 |
14 | 4.5 | 4 | 0.2 |
15 | 4.5 | 4 | 0.15 |
16 | 5 | 4 | 0.2 |
17 | 5 | 4 | 0.15 |
18 | 4.5 | 4.5 | 0.2 |
19 | 5 | 5 | 0.2 |
20 | 6 | 6 | 0.2 |
21 | 6 | 6 | 0.25 |
22 | 6.5 | 6 | 0.25 |
